AIMS Power PV60CASE, 60 Watt Portable Foldable Solar Panel W/Built In Carrying Case Monocrystalline

AIMS Power PV60CASE, 60 Watt Portable Foldable Solar Panel W/Built In Carrying Case Monocrystallin

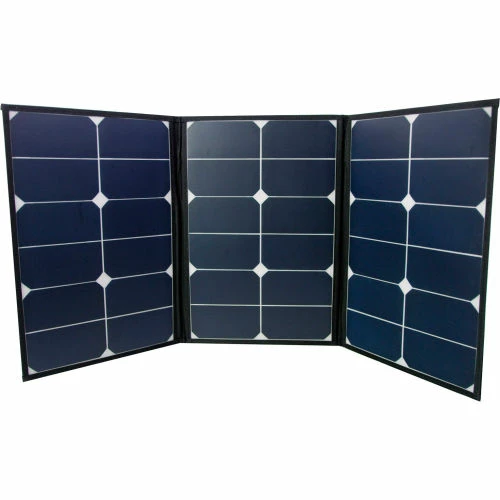

Featuring AIMS Power foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case. This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage. On the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers.The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles.Backed by a 10 year warranty and weighing in at under 3 pounds, this portable solar panel is a must for every remote application needing power.

Features:

• Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
• Built in solar charge controller cable 6ft
• Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
• Portable and easily adjusts to the optimum sunlight angle
• Accordion style fold up case
• Weather resistant
• Appropriate for outdoor use
• Durable and rugged case with convenient side zipper pocket to store wires and charge controller
• Lightweight and super thin allowing for easy storage and set up
• Bypass diode minimizes the power drop when shaded
• Modules are independently tested to ensure conformance with certification and regulatory standards
• Manufacturing facility certified to ISO 9001 quality management system standards
• Panels capable of +/- 3% power efficiency than rated
• 5 year warranty, 10 year 80% output

Specifications:

• High performance: light transmittance up to 93%
• Cell Efficiency: 22.3% (one of the highest)
• Module Efficiency: 19.2% (one of the highest)
• Maximum Power: 60W
• Tolerance Wattage (e.g. +/- 5%): +/- 3W
• Maximum System Voltage: 600V DC (UL)
• Max Power Voltage (Vmp): 19.8 V
• Max Power Current (Imp): 3 A
• Open-Circuit Voltage (Voc): 23.7 V
• Short-Circuit Current (Isc): 3.6 A
• Maximum Fuse Rating: 10 A
• Fire Safety Class: Class A
• Temperature Range: -40°F to 185°F
• Number of cells: 2 x 6 x 3
• Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers
• Temperature Coefficients ⁰C: ISC(%): +2.6, Voc(%): -50.6, Prm(%): -.38, Im(%): +2.2, Vm(%): -60.8
• Dimensions: Expanded 33″ X 15.8″ X 0.20″. Folded 11.22″ x 15.85″ x .6″
• Weight: 2.85 lbs
• Certifications: CE, ETL, TUV and RoHS
