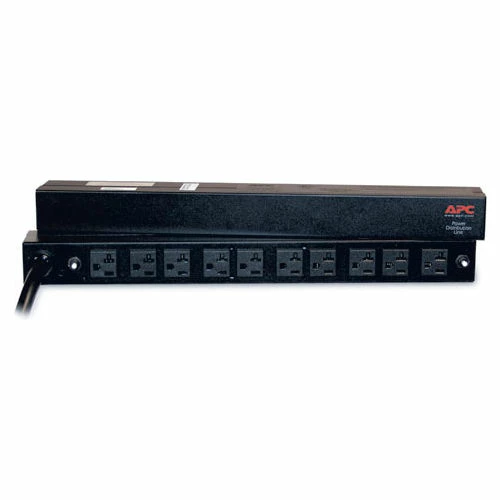

Name: APC AP9560 Rack PDU, Basic, 1U, 30A, 120V, (10)5-20
SKU: APC WBB259218
Availability: InStock

Sale!

APC AP9560 Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

Original price was: $381.95.Current price is: $92.99.

SKU: APC WBB259218 Categories: Generators, Inverters & PDUs, Power Distribution Units Tags: (10) NEMA 5-20R, 0 - 95 Percent, 120V V, 24A, 24A A, 90-132 VAC V, APC, Lighting & Electrical

Quality at its Finest
Quick responses, top-notch service.
No Compromise on Quality
Safe Payments for a Better Shopping Experience

APC AP9560 Rack PDU, Basic, 1U, 30A, 120V, (10)5-20

APCBasic Rack PDU, Input:100V, 120V, Input Connections:NEMA L5-30P, Cord Length: 12feet ( 3.66meters ), Output:120V, Output Connections:NEMA 5-20R. Includes: Rack Mounting brackets, User Manual.

Resettable circuit breakers – Enables a quick recovery from overload events.
Vertical mounting capability
Horizontal mounting capability
Rack-Mountable – Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
Single input power source – Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections – Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution – Provides a number of outlets to bring power to rack equipment at an affordable price.

Cord Length	12 ft
Input Frequency	50/60 Hz
Certifications	cUL Listed,CSA,UL 60950,UL Listed
Warranty	2 Years Repair or Replace
Max Total Current Draw per Phase	24A A
Operating Relative Humidity	0 – 95 Percent
Operating Environment	5 to 113 °F
Overload Protection	Yes %
Nominal Input Voltage	100V,120V V
Color Family	Black
Max Input Current per Phase	30A A
Brand	APC
Input Connections	NEMA L5-30P
Power Cords	1
Weight	5.5 lbs
Manufacturers Part Number	AP9560
Always On Outlets	10
Storage Relative Humidity	0 – 95 Percent
Nominal Output Voltage	120V V
Output Connections	(10) NEMA 5-20R
Max Line Current per Phase	24A A
Acceptable Input Voltage	90-132 VAC V
Regulatory Derated Input Current	24A
Max Width	17 in
Max Height	2 in
Max Depth	2 in
Weight Capacity	2880 VA
Environmental Compliance	RoHS
